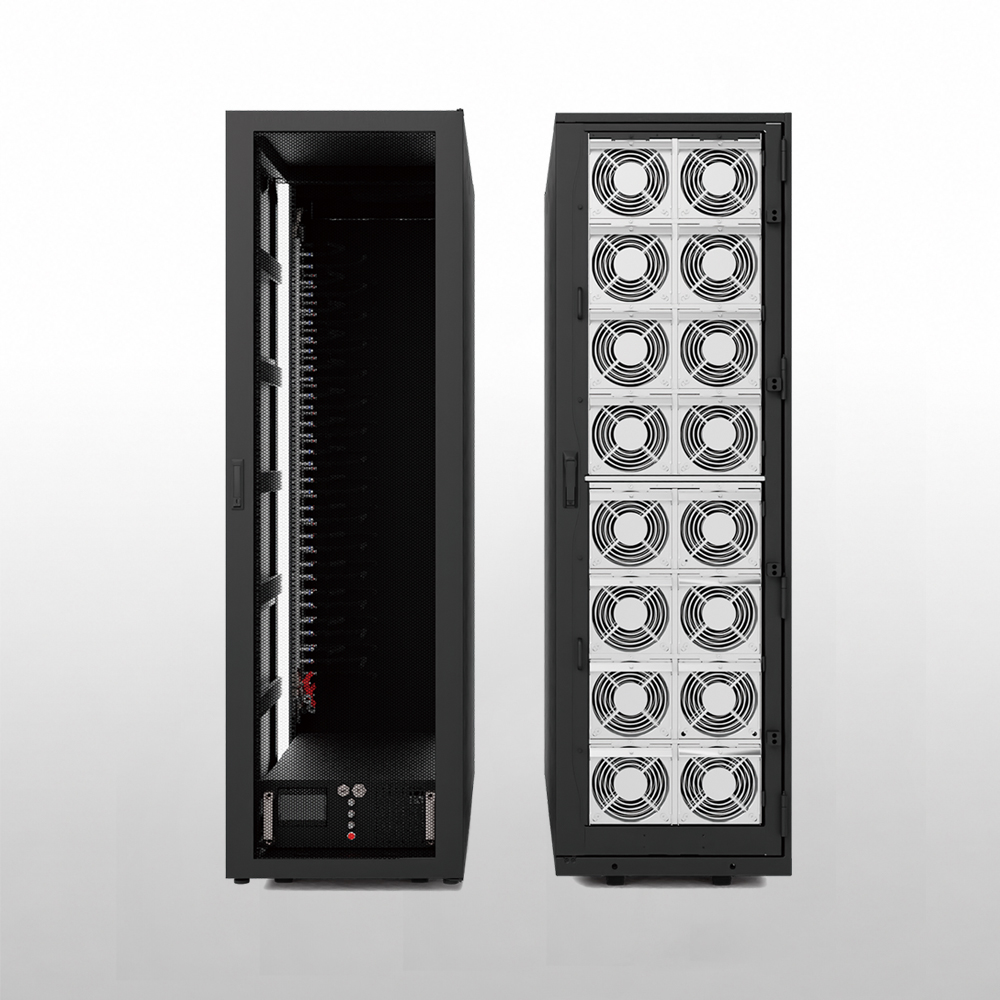

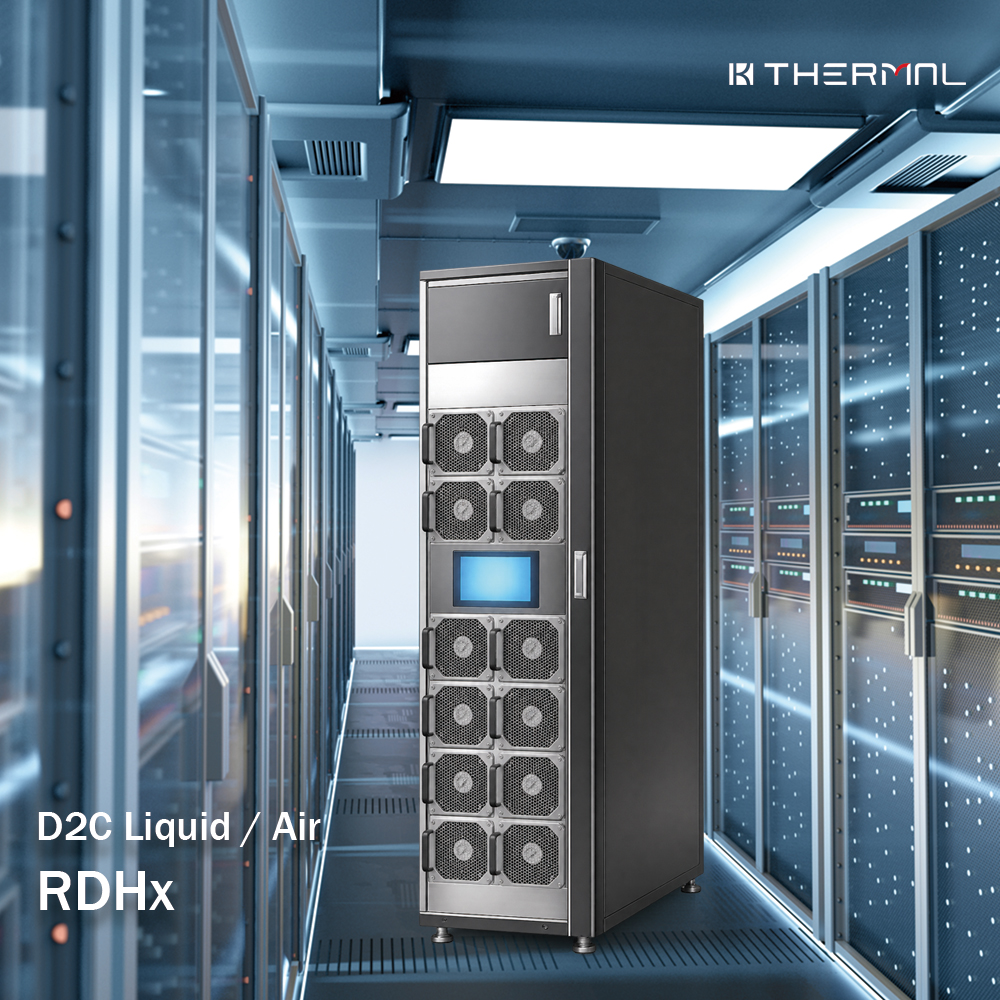

RDHx

Liquid-to Air Cooling System

Key Features

  • Liquid-to-air cooling system, could be easily installed in current data center.
  • Liquid cooled coils captures exhaust heat at the rack rear to minimize thermal dissipation and reduce facility operational costs.
  • Offers a cost-effective pathway for transitioning from air-to-liquid cooling without complex hardware retrofitting.
  • Remote control through SNMP

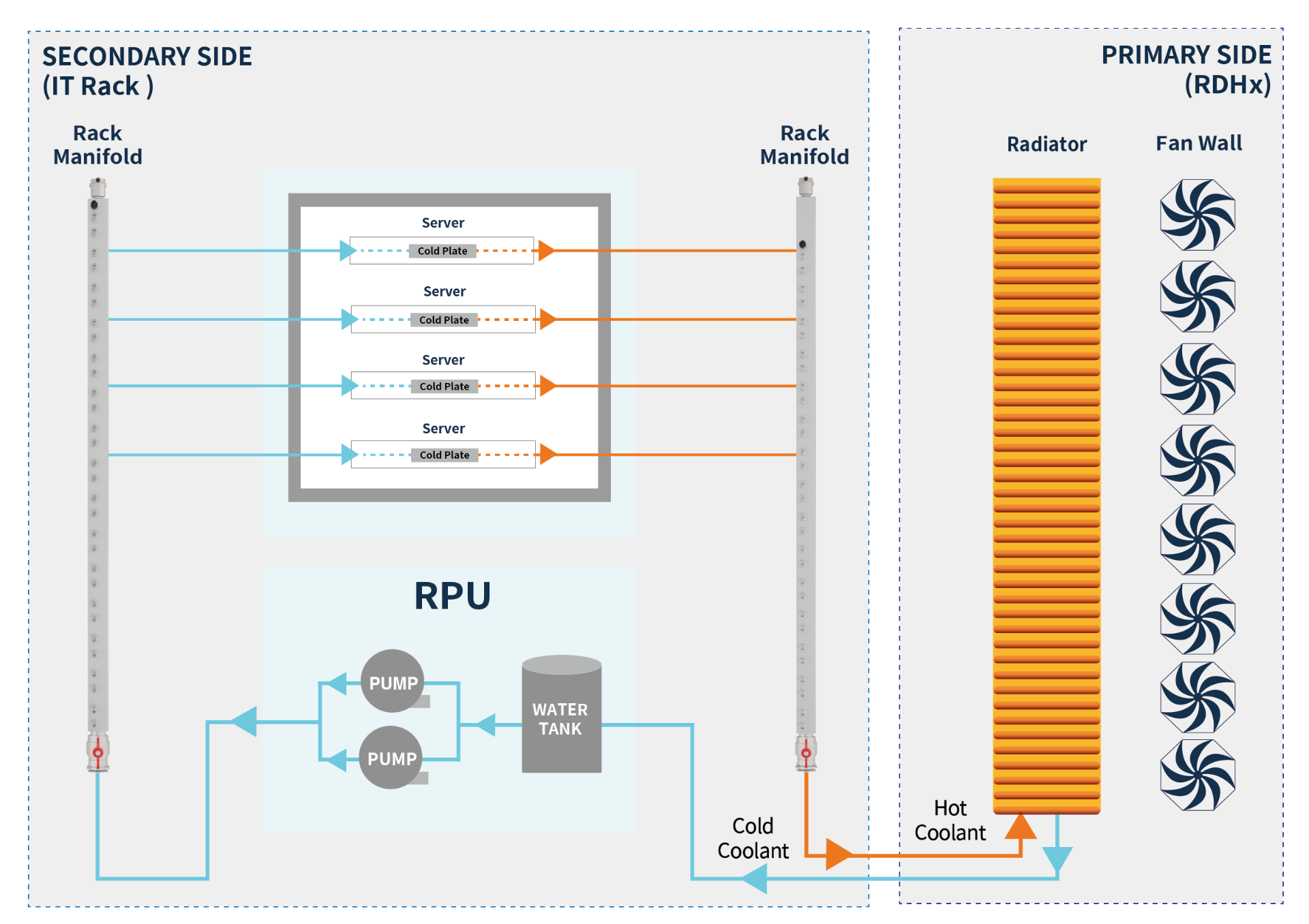

System Principle Description

Rack Manifolds

  • These rack manifolds are suspended in the rear space of the cabinet, primarily providing cooling liquid circulation to each cold plate on the server.
  • Allowing a maximum of 2 cooling loops per 1U server.
  • 8-80 Channel is used with cabinets and can be customized for production.

Reservoir and Pumping Unit, RPU

  • The RPU is installed at the bottom of the cabinet, corresponding to the height of four 1U servers.
  • A variety of control functions, easy to monitor the rotation speed and adjust the flow rate, temperature.
  • Reducing the cooling costs of the computer room, improving competitiveness and sustainable operations.

Finned Tube Heat Exchangers

  • Use fin tubes instead of light tubes as the heat transfer surface to expand the heat exchange area and promote heat exchange efficiency.
  • Enhance the thermal conductivity by increasing the outer surface or inner surface.
